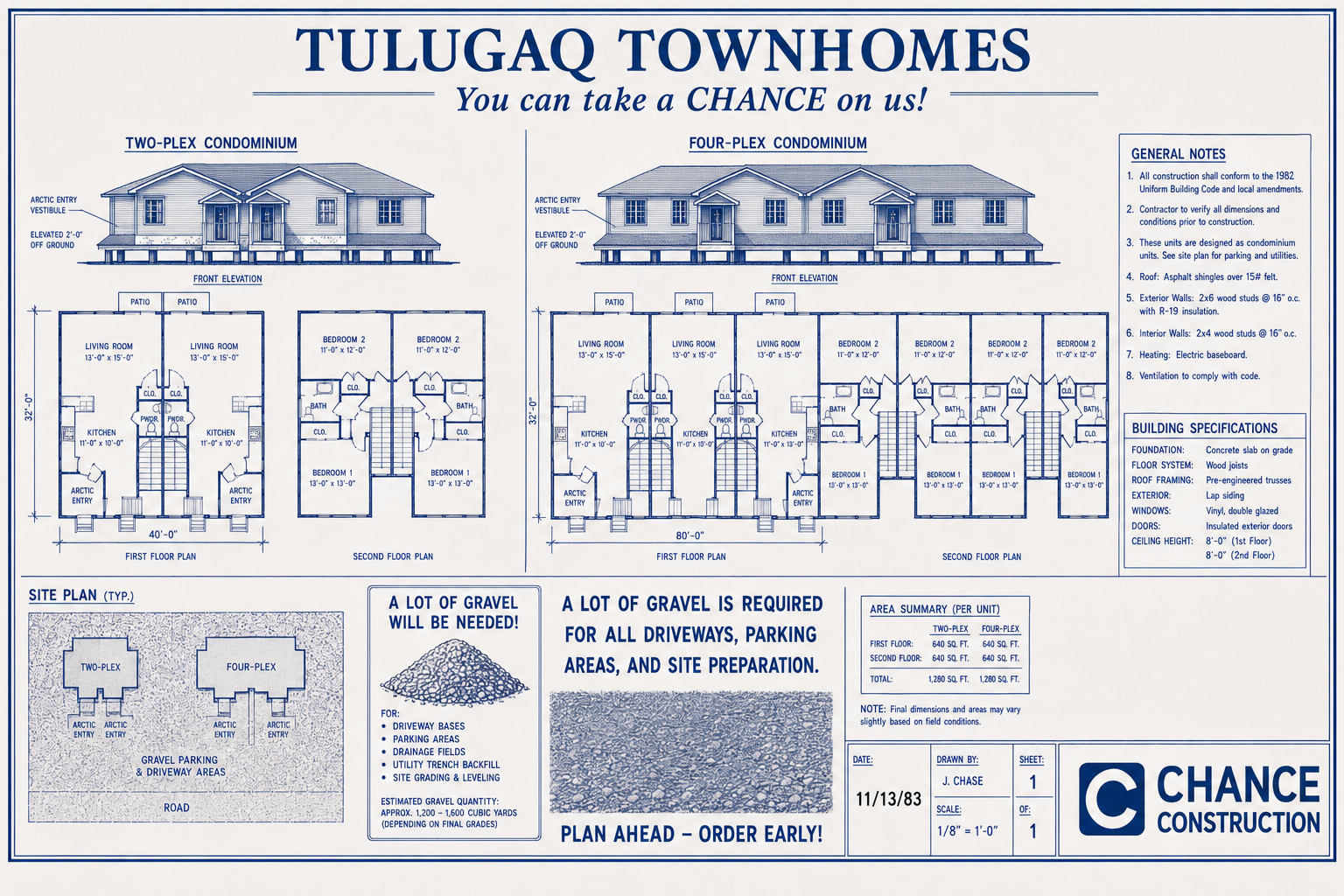

Tulugaq Townhomes

TULUGAQ TOWNHOMES

TWO-PLEX CONDOMINIUM

sancric ent
vesTioue

euevaTeD 2-0"

You can take a CHANCE on us!

FOUR-PLEX CONDOMINIUM

(OFF GROUND,

vine Room tuving Room
ois 10" x10

FIRST FLOOR PLAN

‘BeoROoM 2 ‘EOROOM 2
Worx roe

BEDROOM 1
were wor

SECOND FLOOR PLAN

‘arcrc ext
vesTaule

ELEVATED 2-0"
(OFF GROWN

LuviNs Roou
org

Luvin ROOM LUM Root
rons oonicy

FIRST FLOOR PLAN

GENERAL NOTES

1. All construction shal conform tothe 1982,
Uniorm Bulking Code and local amendments.

2. Contractor to very all dimensions and
conditions prior to construton.

3. These units ae designed as condominium
units. See site plan for parking and wits

Roof: Asphalt shingles over 15# fet

Exterior Walls: 2x6 wood studs @ 16" 0
with R-19 insulation.

Interior Walls: 2x4 wood studs @ 16° oc.
Heating: Electric baseboard,

Ventilation to comply with code

BUILDING SPECIFICATIONS

‘SECOND FLOOR PLAN

FOUNDATION: Concrete slab on grade
FLOOR SYSTEM: — Wood joists

ROOF FRAMING: —Pre-engineered trusses
EXTERIOR: Lap siting

wiNoows: Vinyl, double glazed
Doors: Insulated exterior doors
CEILING HEIGHT: 8-0" (Ist Floor)

18-0" (2nd Floor)

‘SITE PLAN (tyP.)

A LOT OF GRAVEL

GRAVEL PARKING
* & DRIVEWAY AREAS,

WILL BE NEEDED!

‘= DRIVEWAY BASES.
‘© PARKING AREAS
‘© DRAINAGE FIELDS
‘© UTILITY TRENCH BACKFILL
‘© SITE GRADING & LEVELING

ESTIMATED GRAVEL QUANTITY:
APPROX. 1200 = 1600 CUBIC YARDS

(GEPENDING ON FINAL GRADES)

A LOT OF GRAVEL IS REQUIRED
FOR ALL DRIVEWAYS, PARKING
AREAS, AND SITE PREPARATION.

PLAN AHEAD - ORDER EARLY!

AREA SUMMARY (PER UNIT)
‘TWo-PLEX _FOUR-PLEX

FPRST FLOOR: 640 SQ.FT. 64080. Fr

SECONO FOR: 640 SO.FT, 640 SQ.FT.

TOM: 280 0. FT, 128080. F

NOTE: Final dimensions and areas may vary
slightly based on fld condton.

DATE: DRAWN BY:
J CHASE

11/13/83

CHANCE

CONSTRUCTION
